Products & Parts.

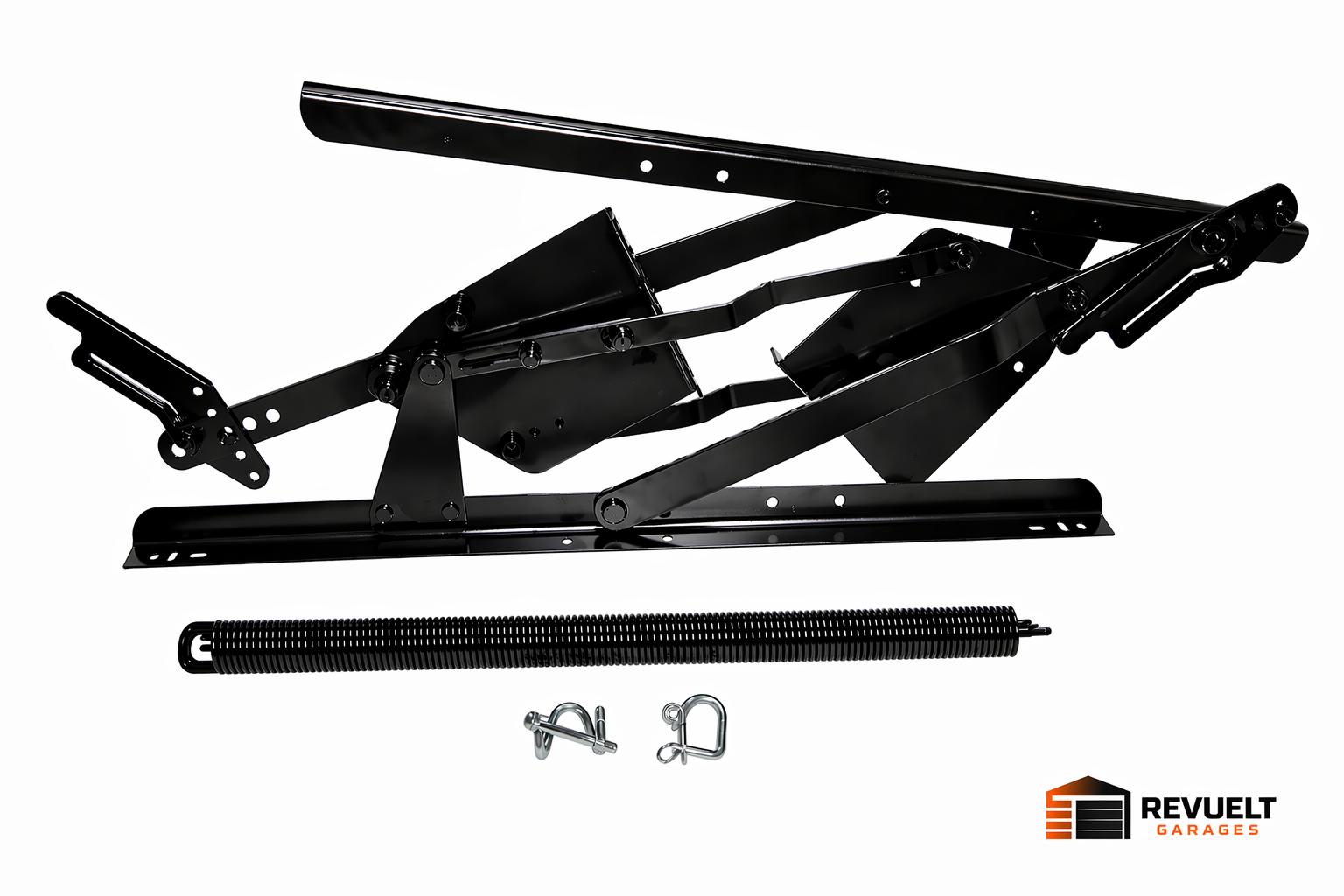

CH-E900

E900 Hardware Kit Standard

Complete residential hardware set. Zinc plated.

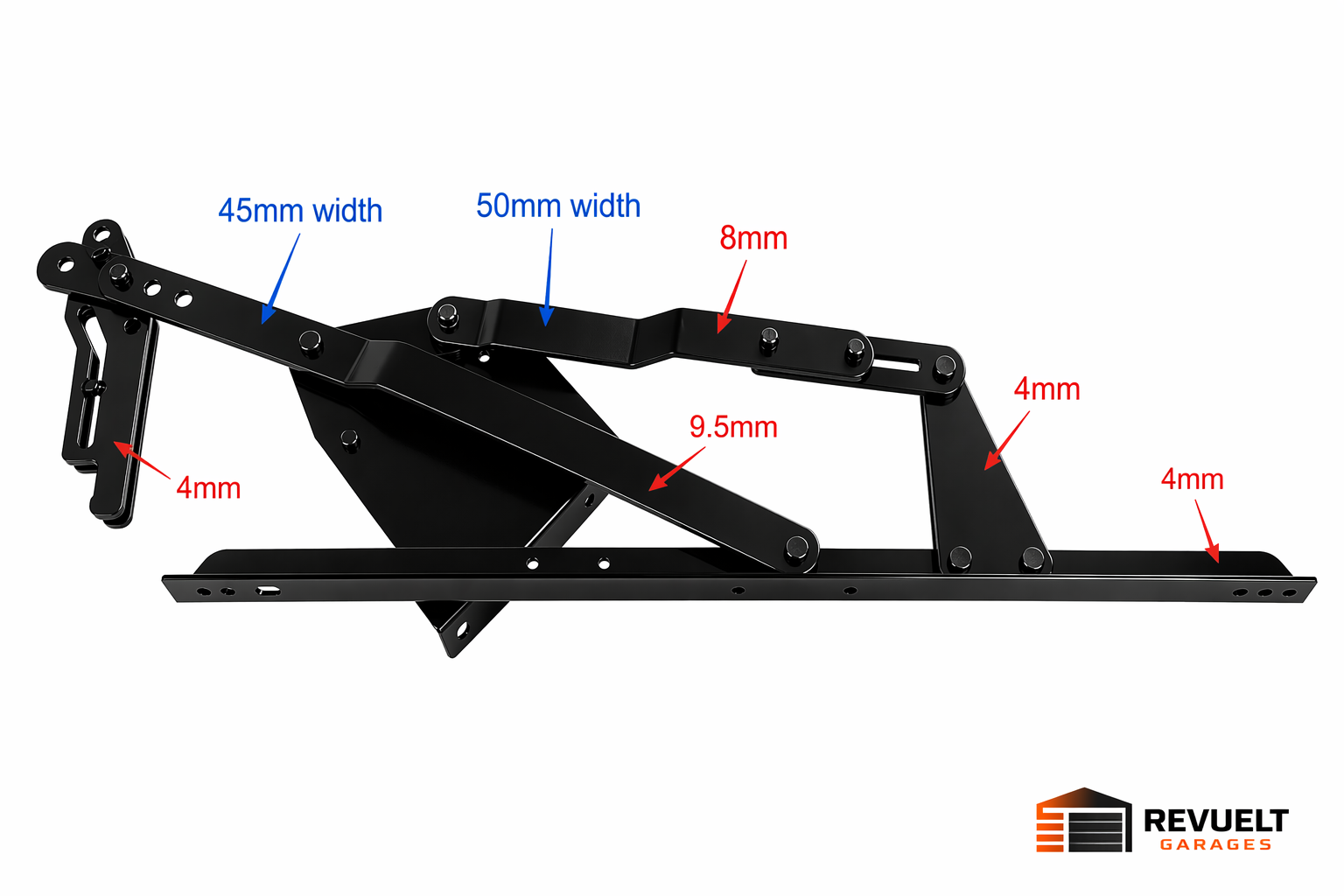

CH-E900-HD

E900 Hardware Kit Commercial

Complete commercial hardware set. Heavy duty.

CH-H18-1

Hinge #1 18GA

1.2mm zinc plated, standard residential

CH-H18-2

Hinge #2 18GA

1.2mm zinc plated, standard residential

CH-H18-3

Hinge #3 18GA

1.2mm zinc plated, standard residential

CH-H18-S1

Semi Hinge #1 18GA

Single-hole mount, 1.2mm zinc plated

CH-H14-0

Hinge #0 14GA

1.8mm, top section, galvanized

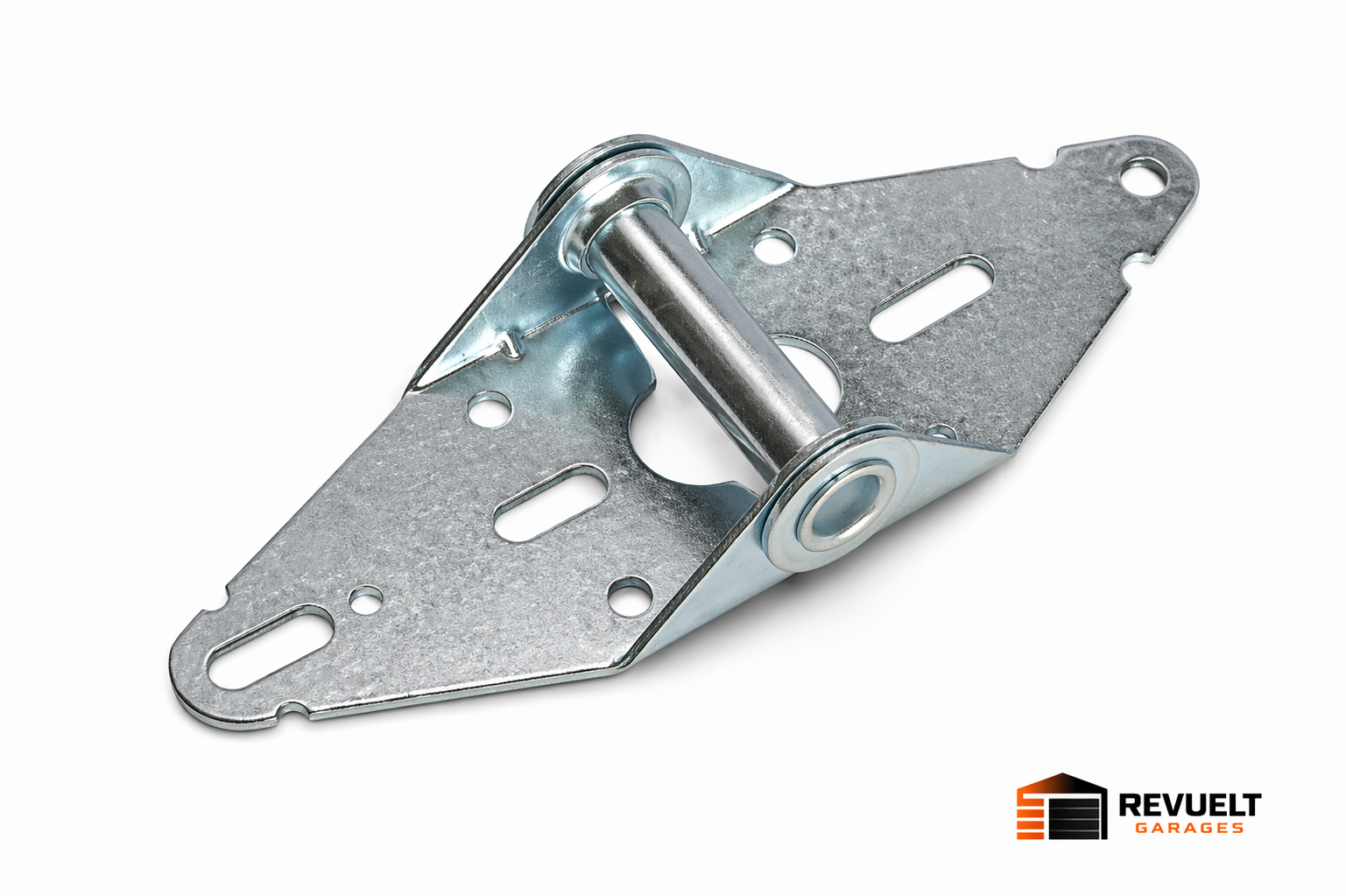

CH-H14-1

Hinge #1 14GA

1.8mm galvanized, universal fit

CH-H14-2

Hinge #2 14GA

1.8mm galvanized, universal fit

CH-H14-3

Hinge #3 14GA

1.8mm galvanized, universal fit

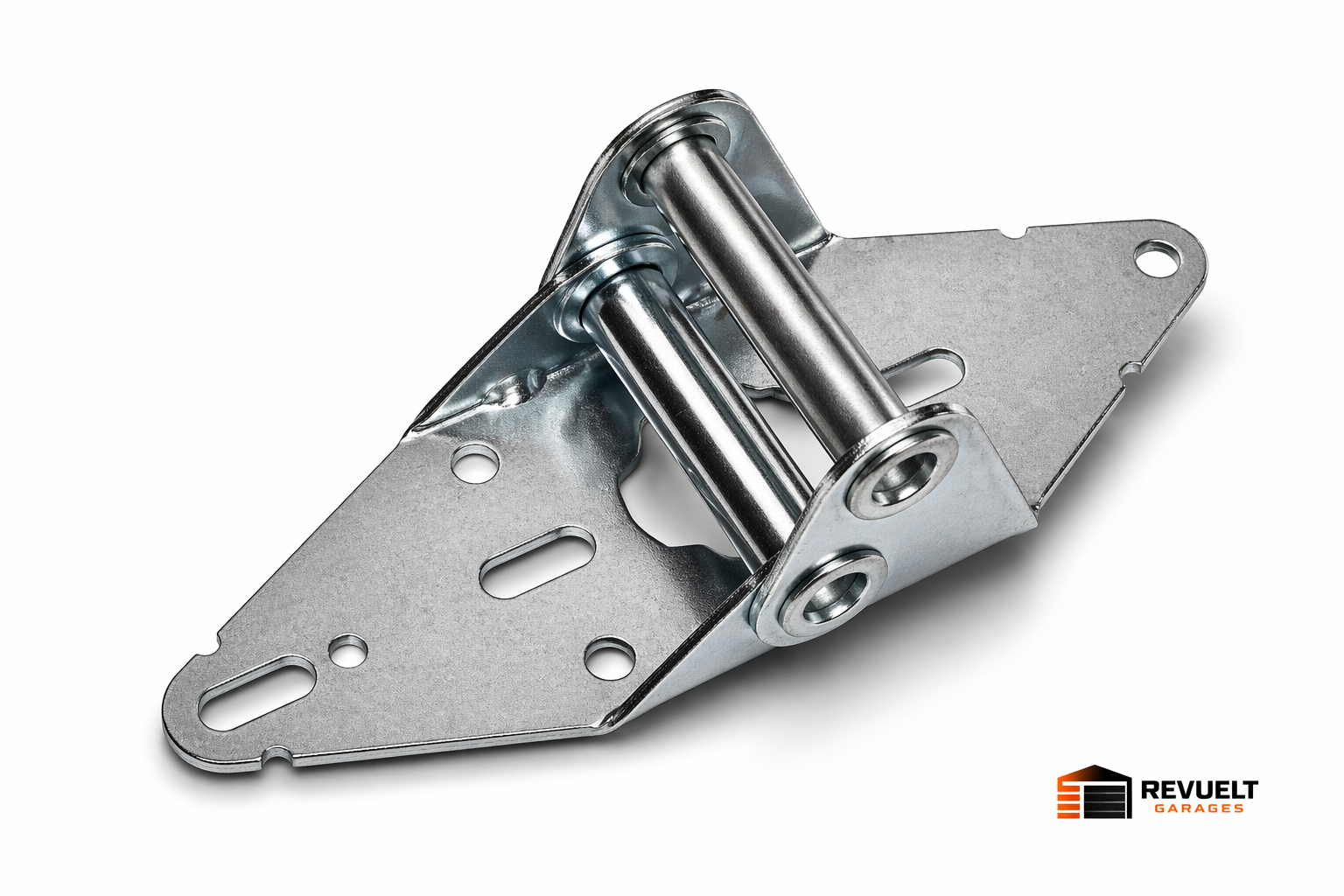

CH-H14-4

Hinge #4 14GA

1.8mm galvanized, universal fit

CH-H14-5

Hinge #5 14GA

1.8mm galvanized, universal fit

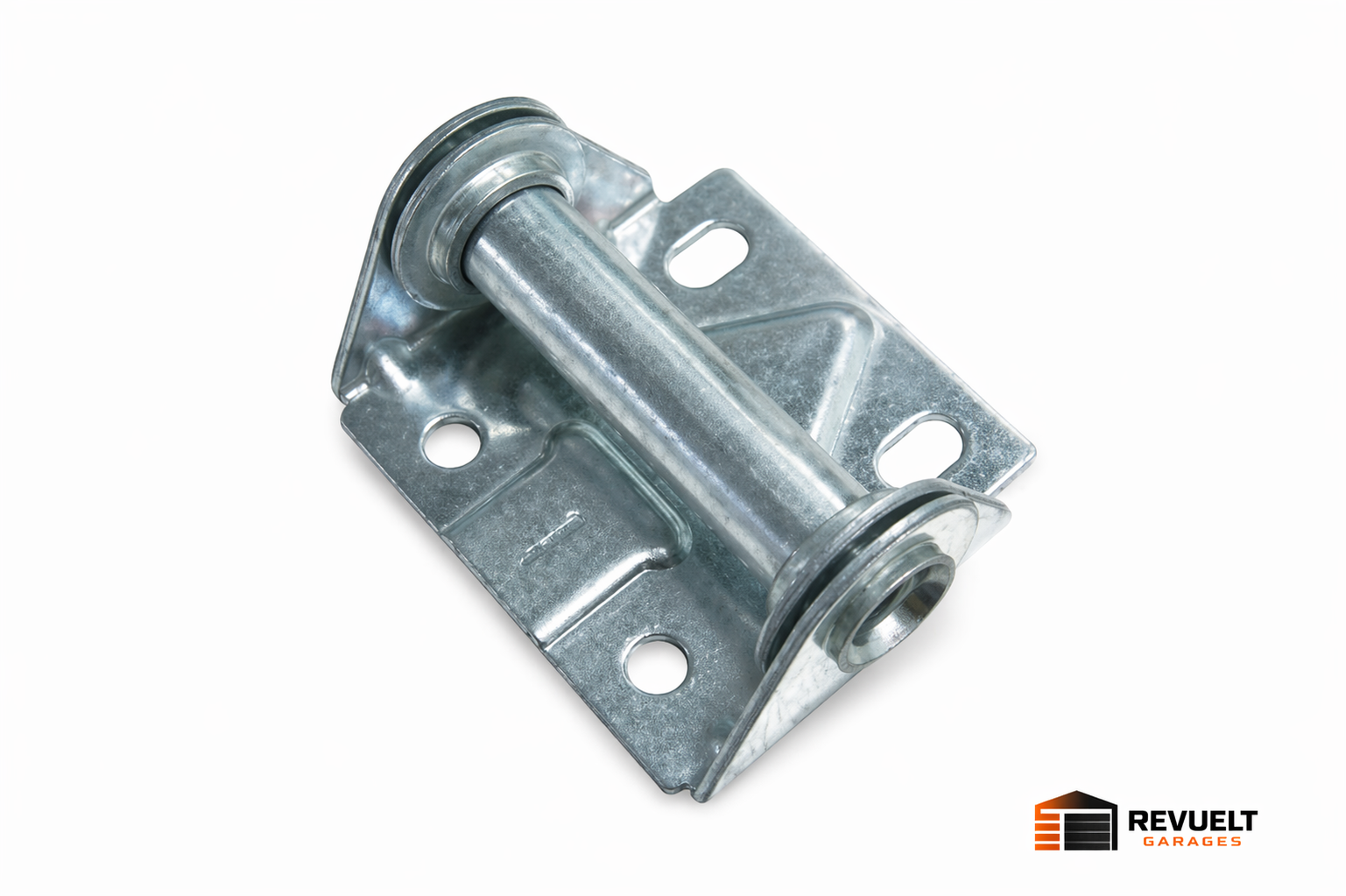

CH-H14-S1

Semi Hinge #1 14GA

Single mount, 1.8mm zinc plated

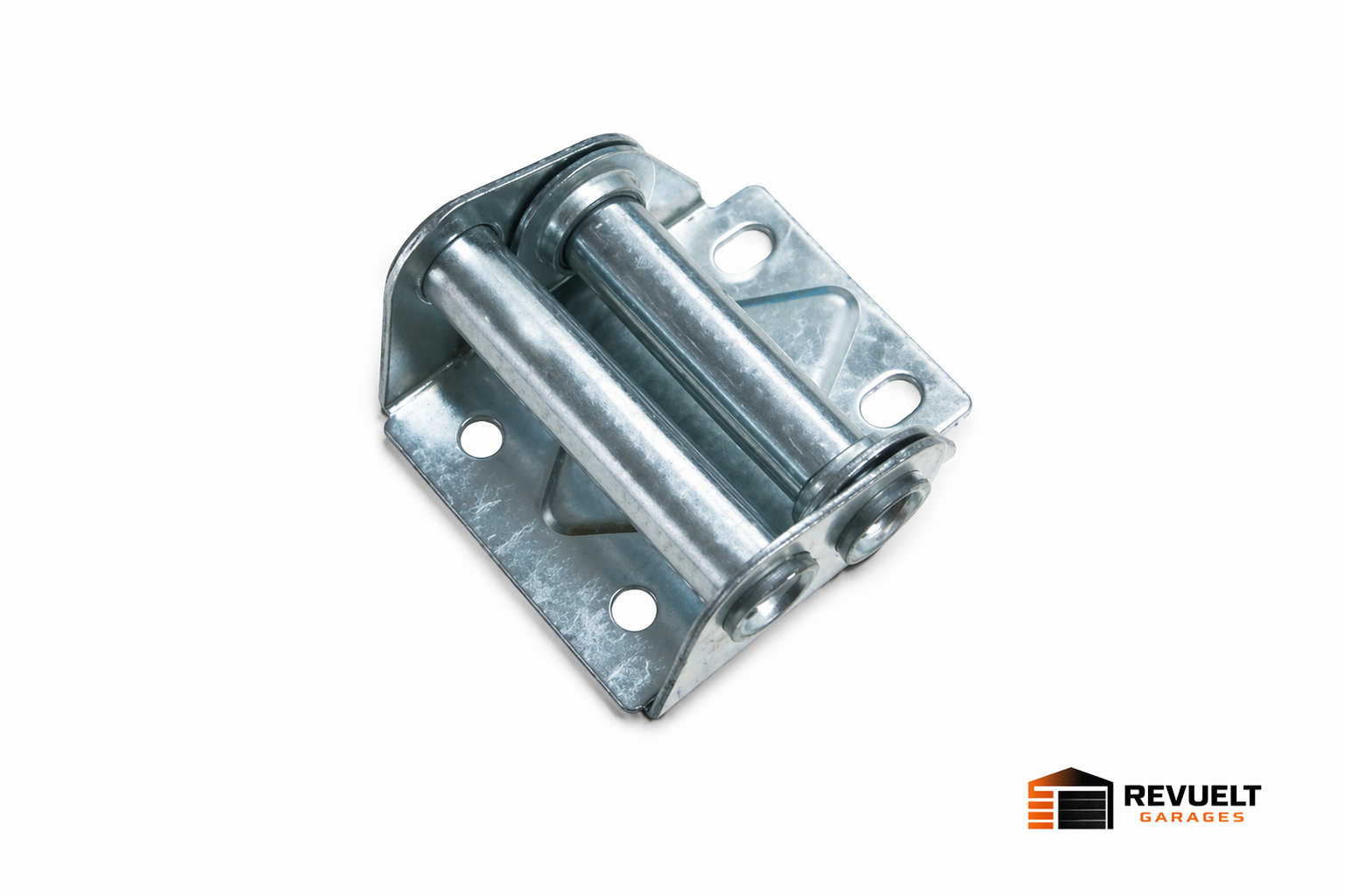

CH-H14-S2

Semi Hinge #2 14GA

Single mount, 1.8mm zinc plated

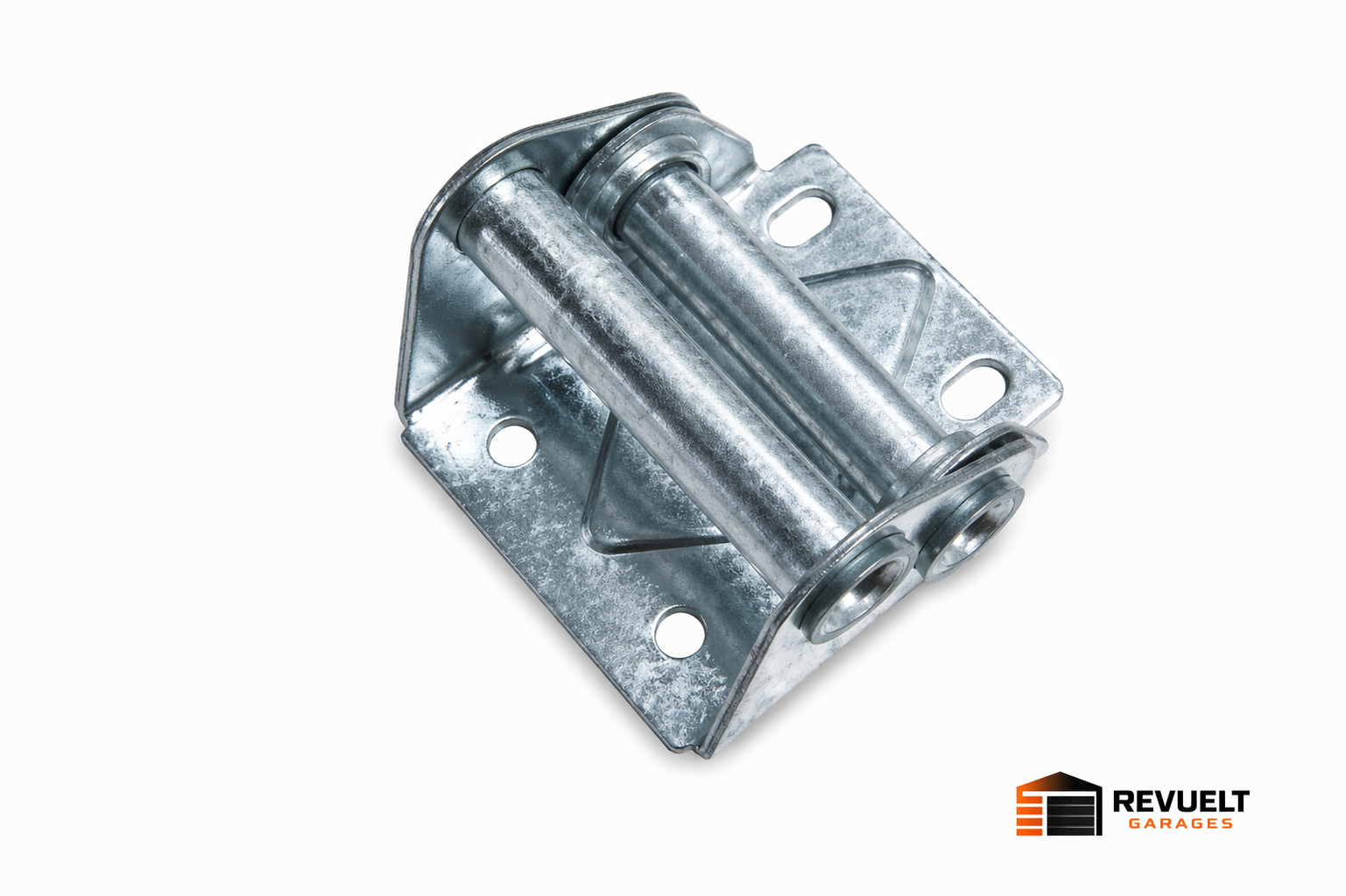

CH-H14-S3

Semi Hinge #3 14GA

Single mount, 1.8mm zinc plated

CH-H14-S4

Semi Hinge #4 14GA

Single mount, 1.8mm zinc plated

CH-H11-1

Hinge #1 11GA

3.0mm heavy commercial, zinc plated

CH-H11-2

Hinge #2 11GA

3.0mm heavy commercial, zinc plated

CH-H11-3

Hinge #3 11GA

3.0mm heavy commercial, zinc plated

CH-H11-4

Hinge #4 11GA

3.0mm heavy commercial, zinc plated

CH-H11-5

Hinge #5 11GA

3.0mm commercial grade, zinc plated

CH-H11-6

Hinge #6 11GA

3.0mm commercial grade, zinc plated

CH-H11-S1

Semi Hinge #1 11GA

Single mount, 3.0mm commercial

CH-H11-S2

Semi Hinge #2 11GA

Single mount, 3.0mm commercial

CH-H11-S3

Semi Hinge #3 11GA

Single mount, 3.0mm commercial

CH-HTC-L

Top Corner Hinge Left 14GA

Residential left, 1.8mm galvanized

CH-HTC-R

Top Corner Hinge Right 14GA

Residential right, 1.8mm galvanized

CH-HEL-01

Extension Bracket Hinge

Low headroom conversion bracket

CH-BB-01

Bottom Bracket Standard Left

Non-adjustable, 2.3mm zinc plated

CH-BB-02

Bottom Bracket Standard Right

Non-adjustable, 2.3mm zinc plated

CH-BB-03

Bottom Bracket Adjustable Left

3-hole adjustment, zinc plated

CH-BB-04

Bottom Bracket Adjustable Right

3-hole adjustment, zinc plated

CH-BB-05

Bottom Bracket Commercial Left

3.5mm heavy duty, galvanized

CH-BB-06

Bottom Bracket Commercial Right

3.5mm heavy duty, galvanized

CH1125

End Bearing Plate 1" Standard

2.5mm, 1" bearing, sold as pairs

CH1125A

End Bearing Plate 1" Adjustable

Slotted adjustment, sold as pairs

CH1125-L

End Bearing Plate 1.25"

For 1-1/4" commercial shaft, pairs

CH1125-H

End Bearing Plate 1.75" Heavy

For 1-3/4" heavy commercial shaft

CH1125-S

End Bearing Plate Set Standard

Plates + hardware, residential

CH1125-SS

End Bearing Plate Set Heavy Duty

Commercial plates + hardware set

CH1119

Center Bearing Plate Nylon

3mm, nylon bearing, 85.5mm center

CH1119-S

Center Bearing Plate Steel

3mm, steel race bearing, 1" shaft

CH1119-D

Center Bearing Plate Double

Twin-spring systems, 3mm plate

CH1119-C

Center Bearing Plate Commercial

Heavy commercial, reinforced mount

CH1119-B

Center Bearing Plate Bolt Set

Replacement bolt set, fits CH1119

CH-TCB-L14

Top Corner Bracket Left 14GA

Residential left, 1.8mm galvanized

CH-TCB-R14

Top Corner Bracket Right 14GA

Residential right, 1.8mm galvanized

CH-TCB-L11

Top Corner Bracket Left 11GA

Commercial left, 3.0mm galvanized

CH-TCB-R11

Top Corner Bracket Right 11GA

Commercial right, 3.0mm galvanized

CH-SBR-02

Side Bracket 2"

Track wall mount, galvanized

CH-SBR-03

Side Bracket 3"

Standard wall mount, galvanized

CH-SBR-04

Side Bracket 4"

Extended wall mount, galvanized

CH-FBK-01

Flag Bracket Residential

14GA standard, zinc plated

CH-FBK-02

Flag Bracket Commercial

11GA heavy duty, galvanized

CH-FBK-03

Flag Bracket Adjustable

Slotted 14GA, multi-position

CH2001

Opener Bracket 18"

Steel zinc plated, 2.5mm

CH2002

Opener Bracket 21"

Steel zinc plated, 2.5mm

CH2003

Opener Bracket 24"

Steel zinc plated, 2.5mm

CH2004

Opener Bracket 30" Commercial

Heavy duty, 3.0mm zinc plated

CH-STB-01

Strut End Bracket 9ft

For 9ft strut mounting, galvanized

CH-STB-02

Strut Center Bracket

Mid-span support, galvanized

CH-STB-03

Strut End Bracket 16ft

For 16ft strut mounting, galvanized

CH-HBR-01

Header Bracket Standard

Low headroom mount, residential

CH-HBR-02

Header Bracket Commercial

Heavy duty header, commercial

CH-JBR-01

Jamb Bracket Set

Side jamb pair, galvanized

CH-WA-01

Wall Angle 1-1/4" Standard

Galvanized, residential horizontal

CH-WA-02

Wall Angle 1-1/2" Commercial

Galvanized, commercial horizontal

CH-TBK-01

Track Bracket Wall Adjustable

Slotted 14GA, multi-position

CH-TBK-02

Track Bracket Ceiling Mount

Ceiling mount, sold as pairs

CH-TBK-03

Track Hanger Rod 12"

Adjustable height, threaded rod

CH-TBK-04

Track Hanger Rod 18"

Extended commercial, threaded rod

CH-RBK-01

Reinforcement Bracket Short

Panel reinforcement, short span

CH-RBK-02

Reinforcement Bracket Long

Panel reinforcement, extended span

CH-RBK-03

Center Stile Bracket

Mid-panel support, galvanized

CH-RBK-04

Door Reinforcement Strap

Full-width strap, galvanized steel

CH-RBK-05

Top Panel Bracket

Top section reinforcement, galvanized

CH-RBK-06

Bottom Panel Bracket

Bottom section reinforcement, galvanized

CH-CL3001

Safety Cable Set 7ft

1/8"×144" 7×19 + 3/32"×132" 7×7

CH-CL3002

Safety Cable Set 8ft

1/8"×168" 7×19 + 3/32"×156" 7×7

CH-CL3003

Safety Cable 1/8"×144" Single

Galvanized 7×19 strand, single

CH-CL3004

Safety Cable 3/32"×132" Single

Galvanized 7×7 strand, single

CH-CL3005

Safety Cable 1/8"×168" Single

For 8ft door system, 7×19

CH-CL3006

Safety Cable 3/32"×156" Single

For 8ft door system, 7×7

CH-HT01

Chain Hoist 1/4 Ton

Manual chain block, galvanized hook

CH-HT02

Chain Hoist 1/2 Ton

Manual chain block, galvanized hook

CH-HT03

Chain Hoist 1 Ton

Heavy duty manual chain block

CH-HT04

Chain Hoist Hook Set

Replacement hooks, galvanized

CH-SD01

Safety Retainer Cable

Anti-drop retention, galvanized

CH-SD02

Safety Bracket Anti-Drop

For extension spring systems

CH-SD03

Cable Retention Clip Pack

10pc pack, galvanized steel

CH-SD04

Spring Safety Shield

Torsion spring guard, OSHA-compliant

CH-SD05

Warning Label Set

Safety labels, 10pc pack

CH-SD06

Safety Pin Set

Anti-reversal pins, 5pc galvanized

CH-LK01

T-Bar Lock Standard

1.5mm case, 4mm bar, 83mm centers

CH-LK02

T-Bar Lock Commercial

2.0mm heavy case, galvanized

CH-LK03

T-Bar Lock Keyed

Keyed cylinder included, 5-pin

CH-LK04

T-Bar Lock Wide

105mm centers, wider panels

CH-LK05

T-Bar Lock Low Profile

Compact residential, slim case

CH-LK06

T-Bar Lock Kit

Case, bar, spring, hardware included

CH-SLB01

Slide Bolt Standard

Galvanized horizontal bolt

CH-SLB02

Slide Bolt Heavy

12mm bar, commercial grade

CH-SLB03

Slide Bolt Pair

L+R set, galvanized residential

CH-SLB04

Slide Bolt Vertical

Drop bolt, galvanized floor anchor

CH-HDL01

Handle T-Style Exterior

Exterior galvanized, T-bar style

CH-HDL02

Handle Flush Pull

Recessed residential, zinc plated

CH-HDL03

Handle Commercial

Heavy duty, zinc die-cast

CH-HDL04

Handle Grip Standard

Interior pull, powder coated

CH-KL01

Keyed Cylinder Lock

5-pin tumbler, 2 keys included

CH-KL02

Keyed Lock Deadbolt

Deadbolt style, 5-pin, 2 keys

CH-KL03

Key Cylinder Only

Replacement cylinder, fits CH-KL01/02

CH-KL04

Rekeying Kit

For CH-KL01 and CH-KL02 cylinders

CH-PDH01

Pass Door Hinge Pair

3.5", zinc plated, sold as pairs

CH-PDH02

Pass Door Lock Set

Knob, latch, strike plate included

CH-PDH03

Pass Door Threshold

Aluminum extrusion, 36"

CH-PDH04

Pass Door Closer

Surface mounted, adjustable tension

CH-NR01

Nylon Roller 2" Short Stem

11-ball, 119mm stem, quiet install

CH-NR02

Nylon Roller 3" Stem

11-ball, 3" stem, quiet operation

CH-NR03

Nylon Roller 2" Heavy Duty

11-ball HD, rated for commercial use

CH-NR04

Nylon Roller 4" Stem

Extended stem, commercial track

CH-NR05

Nylon Roller 7-Ball

Budget residential, 2" track

CH-NR06

Nylon Roller 2" Low Noise

Premium 13-ball, ultra-quiet

CH-SR01

Steel Roller 2" Short Stem

10-ball, 119mm stem, zinc plated

CH-SR02

Steel Roller 2" Long Stem

10-ball, 181mm stem, zinc plated

CH-SR03

Steel Roller 3" Long Stem

10-ball heavy duty, zinc plated

CH-SR04

Steel Roller 4" Long Stem

Commercial applications, 10-ball

CH-SR05

Steel Roller 2" 13-Ball

High-cycle commercial, zinc plated

CH-DR01

Duplex Roller 2"

Steel/nylon hybrid construction

CH-DR02

Duplex Roller 3" Stem

Extended steel/nylon hybrid

CH-DR03

Low Clearance Roller

For tight track clearance applications

CH-EB01

End Bearing 1"

6203-2RS, fits 1" torsion shaft

CH-EB02

End Bearing 1.25"

Fits 1-1/4" commercial shaft

CH-EB03

End Bearing 1.75"

Fits 1-3/4" heavy commercial shaft

CH-CB01

Center Bearing 1" Nylon

Nylon race, 1" torsion shaft

CH-CB02

Center Bearing 1" Steel

Steel race, 1" shaft, commercial

CH-CB03

Center Bearing 1.25"

Commercial nylon race, 1-1/4" shaft

CH-CB04

Bearing Replacement Set 1"

Complete set — end + center bearings

CH-CD01

Cable Drum 13"

Normal lift. Max height 3965mm. Max weight 340kg. 1" shaft.

CH-CD02

Cable Drum 8"

Normal lift. Max height 2440mm. Max weight 240kg. 1" shaft.

CH-CD02B

Cable Drum 9"

Normal lift. Max height 2740mm. Max weight 250kg. 1" shaft.

CH-CD03

Cable Drum 12"

Normal lift. Max height 3650mm. Max weight 340kg. 1" shaft.

CH-CD04

Cable Drum 18"

Normal lift. Max height 5500mm. Max weight 680kg. 1" shaft.

CH-CD05

Cable Drum 32" Aluminum

Normal lift. Aluminum. Max height 9750mm. Max weight 700kg.

CH-CD06

Cable Drum High Lift

4–54" high lift. Max hilift 1375mm. Max weight 700kg.

CH-CD07

Cable Drum 120" High Lift

High lift. Max hilift 3050mm. Max door height 6860mm.

CH-CD08

Cable Drum 164" High Lift

High lift. Max hilift 4165mm. Max door height 10165mm.

CH-CD09

Cable Drum 11" Vertical Lift

Vertical lift. Max height 3352mm. 25.4mm shaft.

CH-CD10

Cable Drum 18" Vertical Lift

Vertical lift. Max height 5486mm. 25.4mm shaft.

CH-CD11

Cable Drum 28" Vertical Lift

Vertical lift. Max height 8534mm. Max weight 1000kg.

CH-SF01

Spring Fitting 1-3/4"

Universal winding and stationary cone pair. For 1" shaft.

CH-SF02

Spring Fitting 2"

Universal winding and stationary cone pair. For 1" shaft.

CH-SF03

Spring Fitting 2-5/8"

Universal winding and stationary cone pair. For 1" shaft.

CH-SF04

Spring Fitting 3-3/4"

Universal winding and stationary cone pair. For 1" shaft.

CH-SF05

Spring Fitting 5-1/4"

Universal winding and stationary cone pair. For 1" shaft.

CH-SF06

Spring Fitting 6"

L+R winding cone set plus stationary cones. For 1" shaft.

CH-SF06B

Spring Fitting 6" 125U

6-125U. Left and right winding cone set. For 1" shaft.

CH-VT-2-15

Vertical Track 2" 1.5mm

Sectional door vertical track. 2" size. 1.5mm thickness.

CH-VT-2-18

Vertical Track 2" 1.8mm

Sectional door vertical track. 2" size. 1.8mm thickness.

CH-VT-2-20

Vertical Track 2" 2.0mm

Sectional door vertical track. 2" size. 2.0mm thickness.

CH-VT-3

Vertical Track 3"

Sectional door vertical track. 3" size. 2.5mm thickness.

CH-HT-2-15

Horizontal Track 2" 1.5mm

Sectional door horizontal track. 2" size. 1.5mm thickness.

CH-HT-2-18

Horizontal Track 2" 1.8mm

Sectional door horizontal track. 2" size. 1.8mm thickness.

CH-HT-2-20

Horizontal Track 2" 2.0mm

Sectional door horizontal track. 2" size. 2.0mm thickness.

CH-HT-3

Horizontal Track 3"

Sectional door horizontal track. 3" size. 2.5mm thickness.

CH-HV01

Steel Curve 2"

2" size. 1.5mm or 2mm thickness. Zinc plated.

CH-HV02

Steel Curve

2" size. 1.5mm or 2mm thickness. Zinc plated.

CH-LT

L-Profile

For sectional door. 2.0mm track for 2" and 3" track.

CH-ST01

Strut for Panel

0.9mm thickness. 62mm height. Galvanized steel.

CH-ST02

Strut for Panel Bending Edge

0.9mm. 62mm height. Galvanized with bending edge.

CH-ST03

Strut for Panel 80mm

1.0mm thickness. 80mm height. Galvanized steel.

CH-ST04-3

Strut for Panel 3"

1.0mm thickness. 75mm height. Galvanized steel.

CH-JA01

Flag Joint Angle

2mm thickness. Slotted holes. L+R track fixing.

CH-JA02

Joint Angle Iron 400mm

Double track substitute. 400mm length. Zinc plated.

CH-JA03

Joint Angle Iron Flag-Shaped

Flag-shaped. 2.3mm. Track fixing. L+R.

CH-JA04

Joint Angle Iron

2.3mm thickness. Slotted holes. L+R track fixing.

CH-JA05

Industrial Joint Angle

2mm thickness. Slotted holes. L+R track fixing.

CH-JA06

Industrial Joint Angle Heavy

2.5mm thickness. Slotted holes. L+R track fixing.

CH-JA07

A Type Bracket

Left and right parts. For shutter doors.

CH-JA08B

Joint Angle Iron Round Hole

Round hole. 1.5–2.5mm. 25×25mm to 40×40mm sizes.

CH-JA09

Jamb Bracket

2.5mm thickness. Zinc plated.

CH-TS03

E-Coating Torsion Spring

E-coat finish. Sizes 1-3/4" to 6". Wire dia 5.5–12.5mm.

CH-TS03-7

Extension Spring

Garage door extension spring. Black or galvanized.

CH-TS05

Extension Spring E900

For E900 one-piece hardware kit.

CH-TS05B

Hook for E900

Used with E900 garage door extension spring.

CH-TSF01

Torsion Spring Filler 3-3/4"

PVC plastic filler. For 3-3/4" torsion spring.

CH-TSF02

Torsion Spring Filler 6"

PVC plastic filler. For 6" torsion spring.

CH-SH01-2

1" Tubular Shaft 2mm

1" tubular shaft. 2mm thickness. Keyway. Galvanized.

CH-SH01-3

1" Tubular Shaft 3mm

1" tubular shaft. 3mm thickness. Keyway. Galvanized.

CH-SH02

1" Solid Shaft

1" diameter. Keyway. Galvanized steel.

CH-SH03

1.25" Solid Shaft

1.25" diameter. Keyway. Galvanized steel.

CH-SH04

Tube Shaft

2.0mm thickness. Galvanized steel.

CH1301A

Shaft Coupler Galvanized

Yellow galvanized. Includes screws.

CH1301B

Shaft Coupler Aluminum

Aluminum. Includes screws.

CH1301C

Shaft Coupler Aluminum 120mm

Aluminum. 120mm length.

CH1301D

Shaft Coupler Iron Black

Iron. Black zinc plated.

CH1301F

Shaft Coupler Iron

Iron. Black zinc plated.

CH1301G

Shaft Coupler Iron

Iron. Black zinc plated.

CH-TRS01

Top Seal PVC

PVC material. Color as requested.

CH-TRS02

Top Seal EPDM

EPDM material. 50mm width.

CH-TRS03

Top Seal Aluminum Profile

Aluminum profile for top seal. For 43mm panel.

CH-TRS04

Top Seal Plastic Profile

Plastic profile for top seal. For 40mm panel.

CH-TRS05

Top Seal Plastic Profile

Plastic profile for top seal. For 40mm panel.

CH-BRS01

Bottom Seal

PVC plus plastic profile. For 40mm panel.

CH-BRS02

Bottom Seal

PVC plus plastic profile. For 40mm panel.

CH-BRS03

Bottom Seal Industrial

Industrial door. PVC plus plastic profile. 40mm panel.

CH-BRS03B

Bottom Seal USA Panel

PVC plus plastic profile. USA standard 40mm panel.

CH-BRS04

Bottom Seal Aluminum Profile

PVC plus aluminum profile. For 40mm panel.

CH-BRS04B

Bottom Seal 43mm

PVC plus aluminum profile. For 43mm panel.

CH-BRS05

Bottom Seal Industrial EPDM

EPDM plus aluminum profile. Industrial door. 40mm.

CH-BRS06

Bottom Seal Round Head

Round head. Width 76mm, head dia 5.3mm. PVC.

CH-BRS07

Bottom Seal Round Head EPDM

Round head. Width 86mm, head dia 5mm. EPDM or PVC.

CH-BRS07-T7.5

Bottom Seal USA T-Type

USA T-type rubber seal. 81mm or 95mm width. PVC.

CH-BRS08

Bottom Seal 50mm

PVC plus retainer. For 50mm panel.

CH-BRS09

Bottom Seal Retainer

PVC plus retainer. 40mm or 43mm panel.

CH-BRS10

Bottom Seal EPDM Industrial

EPDM material. Industrial door. 40mm size.

CH-BRS11

Bottom Seal USA Insulation

PVC plus retainer. Insulation panel. 40mm and 50mm.

CH-BRS12

Bottom Seal USA 50mm

PVC plus retainer. For USA panel. 50mm.

CH-BRS13

Bottom Seal Insulated

PVC plus plastic profile. Insulated 50mm panel.

CH-BRS14

Bottom Seal 50mm

PVC plus retainer. USA panel. 50mm.

CH-BRS15

Bottom Seal PVC Retainer

PVC plus retainer combo. 50mm.

CH-SRS01

Side Seal

PVC or EPDM. Can also be used as top seal.

CH-SRS02

Side Seal

PVC or EPDM. Can also be used as top seal.

CH-SRS03

Side Seal Plastic

Plastic material. Can also be used as top seal.

CH-SRS04

Side Seal

PVC or EPDM. Used with L-profile.

CH-SRS04B

Side Seal Folded Edge

PVC or EPDM. Aux rail with folded edge. Co-extruded.

CH-SRS04C

Side Seal Aluminum

PVC plus aluminum profile. 40mm insulation panel.

CH-SRS04D

Side Seal Plastic

PVC plus plastic profile. 50mm insulated panel.

CH-SRS06

Side Seal EPDM

EPDM plus plastic profile. 40mm and 50mm. Top seal compatible.

CH-SRS16

Side Seal

PVC or EPDM. For 40mm panel.

CH-SRS17

Aluminum Weather Strip

PVC or EPDM. Aluminum weather strip profile.

CH-PU01

3" Pulley

Cold rolled steel. 6 rivets. 1.2mm / 2.0mm clamp. Zinc plated.

CH-PU02

4" Pulley

Cold rolled steel. 6 rivets. 1.2mm / 2.0mm clamp. Zinc plated.

CH-PU03

3" Pulley

1.2mm thickness. 2.0mm clamp. Zinc plated.

CH-PU04

4" Pulley

1.2mm thickness. 2.0mm clamp. Zinc plated.

CH-PU05

3" Pulley Clamp

1.8mm thickness.

CH-PU06

4" Pulley Clamp

1.8mm thickness.

CH-PU07

Pulley Set

1.8mm thickness.

CH-PU08

4" Pulley

1.8mm thickness.

CH-CL

Galvanized Cable

7×7 or 7×19 strand. Dia 1/8", 5/32", 3/16". Custom length.

CH-CL2001

Cable Folder

3mm, 4mm, 5mm sizes.

CH-CL2002

Cable Folder Duplex

3mm, 4mm, 5mm sizes.

CH-CL3001

Extension Door Cable Set 7ft

7ft and 8ft sets. 1/8"×144" 7×19 plus 3/32"×132" 7×7.

CH-CL3002

Extension Door Cable Set 8ft 8"

One pair 8ft 8"×1/8" 7×7. S-hooks and splints included.

CH-CL3003

Extension Door Cable Set

1/8"×168" 7×19 plus 3/32"×156" 7×7, one pair each.

CH-HD01

Industrial Door Handle

Handle for industrial sectional door.

CH1501

Round Head Lift Handle

Mounting holes 5-1/2" on centers. Zinc plated or pre-galvanized.

CH1501B

Modern Lift Handle

Mounting holes 5-1/2" on centers. Zinc plated or pre-galvanized.

CH1504

Lifting Handle

Zinc plated or pre-galvanized.

CH1302A

Small Spring Bumper

2.5mm thickness.

CH1302B

15" Spring Bumper

2.5mm thickness.

CH1302C

27" Spring Bumper

2.5mm thickness.

CH1303

Z Bracket for Spring Bumper

4.0mm thickness. Steel zinc plated. Sold as pair.

CH-KE01

Straight Keyway

1/4×1/4×3", 1/4×1/4×4", 1/4×3/8×3", 1/4×3/8×4" options.

CH-KE02

Bent Keyway

1/4×1/4×3" and 1/4×3/8×3" options.

CH-PD01

Aluminum Hinge Pass Door

For pass door. 2.5m length.

CH-PD02

Z Profile Pass Door

Z profile for pass door.

CH-PD03

U Profile Pass Door

U profile for pass door.
